Hydro Dipping Process

How To Hydro Dipping: The Complete Transfer Printing Process

/0 Comments/in /by

Hydro Dipping Process

Hydro Dipping Step 1: The Surface Cleaning for Base Coating

What you need to prepare for base coating are grease and hydro dipping dip-kit. Before base coating, you need to make sure that the item is very clean which is made up of grime and water. Hydro dipping dip kit comes with a Scotch pad and a piece of either wet or dry sandpaper with 800 grits on which can be used to lightly scuff the part you are dipping so that the primer can be bonded with the part. This is essential.

Also , don’t forget to wear latex gloves to clean the part , which could avoid any grease from your hands dipping on the base . In this process , you are not allowed to touch items to be printed . This is to prevent any grease from getting onto the item from your fingers , which affects the result of the painting reaction .

In order to wipe the item thoroughly without any remaining dust/debris prior to priming , the tack cloth is highly required instead of the regular wiper . This will leave your item very clean and be ready for the next step in the hydro dipping process .

Hydro Dipping Step 2: Priming and Base coating

The primer should be ready to apply after all prepares . We provide all kinds of primers , including white , black and other colors . Shake the can vigorously for 2-3 minutes before applying a light dust coat . Next, Wait for 10 minutes and then apply a slightly heavier coat . Wait another 10 minutes , and then apply what should be your final coat . Do it gently to avoid the reaction as the solvent evaporates meeting painted item .

If the item still isn’t evenly covered , then continually add coats until it is evenly covered . Then , Wait for one hour for the part to be fully dry before moving on to the next step . Onto the next step in the hydro dipping project , Any primers can be removed completely with dry sandpaper which is in hydro dipping kit .

The next step in the hydro dipping process is applying the appropriate base coat . supply the color we recommend to your film if there is one . If the film has transparent parts in , you will be supplied with the paint color you have chosen . The paint we provide in the aerosol cans is automotive base coat paint . This is high-quality paint , which works well with the primer and films, performs well out of the aerosol can .

Hydro Dipping Step 3: The First Drying for Hydro Dipping

In order to avoid applying too much once , you should begin with small coats . Ten-minute drying after the coating is required . Dry the coat for 10minute (60℃-200℃, the temperature setting depends on the material) in drying oven or tunnel till its at least 80% dried before moving into the next step of the hydro dipping process .

Hydro Dipping Step4: Dipping

This is without a doubt that our favorite part of the hydro dipping process. Before hydro dipping , you need to start the heater of your hydro dipping tank for 30-90minutes and check the water temperature controller. You should prepare your items and cut the suitable size hydro graphics film when the water temperature is up to 25-30℃.

The item is now nearly ready to be hydro dipped in your hydro dipping film pattern. Use the masking tape provided “back tape” to the edge of your item. Leave the tape overlapping over the edge of the item . This helps that when the film breaks away during dipping , it will break on the tape. Which means that any problem occurs on the tape , but not the edge of your item.

If there are any areas with water rushing through where hydro dipping applied in , tapes should be applied to these films as well. This stops the hydro dipping pattern being pulled and distorted when water rushes through these areas.

after water warmed to 25-30℃ , lay the hydrographic films without bubbles of air and water between the film and the water trapped on the water. The film will be spread out and fill the surface area of the water after you apply the hydro dip activator. So use a tub that is approximately 10-15mm slightly bigger than the piece of film you are using.

Pinch the film‘s corner with wet your finger and thumb. The side that adheres to your finger is the water-soluble side and this side should face down in the water. Leave the film on the surface of the water for 45-60 seconds (the time depends on the film) before applying the activator.

Shake the activator spray can and slowly pass it over the film. Dip your item through the hydro dipping pattern with 45 degrees , when the film looks very glossy and acts like liquid on the surface of the water.

You can adjust the dipping angle (regular angle is 45 degree).

Hydro Dipping Step5: Rinsing or washing

After hydro dipping , you take your item out and rinse with clean water for five minutes in your hydrographic rinse tank until the residual PVA being washed away and the item is no longer slimy to touch as well.

Hydro Dipping Step6: Drying For Removing The Water

After rinsing , you can put the items into the drying oven or drying tunnel for removing the water about 20-30minutes. Certainly , you can put them outside if sunshine is sufficient.

Hydro Dipping Step7: Top Coating

After rinsing your hydro dipped item and leaving air to dry , you can apply the top coating. Again , shake the aerosol can be provided vigorously for 2-3 minutes. It is very important to apply very small dust coats of lacquer over the print , to begin with.

Applying a wet coat immediately can cause the lacquer reacting with the print , and make it distort. Apply a very light dust coat and leave to dry for 15 minutes.

Then apply another light coat and leave it to dry for 15 minutes. After this whole process , you can start building up heavier coats applying to a final wet whatever is in smooth gloss , satin or matte type.

Is Hydro Dipping Equipment Worth the Investment?

/0 Comments/in /by

Is Hydro Dipping Equipment Worth the Investment?

When you start seriously considering investing in hydro transfer printing equipment, it usually means you want to achieve higher quality product results, or your production needs are stabilizing and scaling up. So, is investing in hydro transfer printing equipment worthwhile? The key depends on your product type, order size, and future development direction.

If you currently primarily handle small-batch orders, manual operation should be sufficient. However, if order volumes continue to increase, product types become relatively fixed, and customers have higher requirements for production efficiency and final consistency, then investing in professional hydro transfer printing equipment becomes particularly important.

Does your current situation limit production capacity?

When relying on manual hydro transfer printing, the final result depends on the experience of the operator. You may have noticed that different people, and even the same person, can produce variations in their operation, and these differences will be reflected in the final product.

When order volumes are small, these issues are acceptable. However, as order volumes increase, this instability amplifies, leading to higher defect rates, rework, and longer delivery times. At this point, relying solely on manual labor is insufficient to support expanded production scale.

By introducing water transfer printing equipment, you can standardize operational processes that previously relied on personal experience, thereby improving the quality of the final product. This is why more and more factories are gradually shifting from fully manual operation to semi-automatic or fully automatic water transfer printing equipment.

When investing in equipment, don’t just focus on the price.

Many people, when considering investing in water transfer printing equipment, often focus on the price first. However, in reality, what truly affects profits is not the initial equipment investment, but the ongoing labor costs, material waste, and production efficiency.

In fact, the introduction of specialized equipment can significantly reduce reliance on manual labor, reduce rework and material waste, thereby optimizing overall factory operating costs. In the long run, this investment often leads to a decrease in overall costs and an increase in profitability.

Different production scales require different water transfer printing equipment.

Of course, not all factories need a fully automatic water transfer printing production line from the start. For factories that are just starting out or have stable small-scale orders, semi-automatic water transfer printing equipment is a suitable choice. If your orders are steadily increasing and your product types are relatively fixed, such as automotive parts, electronic product casings, or outdoor equipment, and you have higher requirements for consistent final results and production efficiency, a fully automated water transfer printing production line is more advantageous. It can achieve continuous and stable production through automatic film laying, automatic activator spraying, continuous immersion, and a water circulation system.

Stable equipment configuration directly impacts delivery time and customer trust.

Customers, besides caring about the quality of the finished product, also have expectations for the final transaction. If your production is unstable, with frequent defective products and reprocessing, this will significantly extend delivery time. With water transfer printing equipment, whether semi-automatic or fully automated, you can have more confidence in pricing, delivery time, and quality consistency.

Obtain a water transfer printing equipment solution suitable for your production stage.

Ultimately, whether to invest in water transfer printing equipment depends on your current factory development goals. It’s not about “how expensive the equipment is,” but whether you want to develop your current water transfer printing business into a stable and sustainable scale. If your goal is long-term operation and gradual expansion, then investing in suitable water transfer printing equipment is not a waste, but rather the infrastructure to support your factory’s development.

Before investing, please contact us. Tsautop will evaluate your product type, size, and production scale to ensure a more informed decision. As an experienced water transfer printing equipment manufacturer, Tsautop can recommend the most suitable equipment configuration based on your specific needs.

Automatic Hydro Dipping Line for Mass Production

/0 Comments/in /by

Automatic Hydro Dipping Line for Mass Production

1. Why Large Hydro Dipping Factories Must Choose a Fully Automatic Production Line

For medium and large hydro dipping factories, if you are still using manual or semi-automatic hydro dipping equipment, you will often face the following problems:

● Limited production speed and output, making it difficult to meet continuously growing large-volume orders;

● Inconsistent product quality caused by differences in worker experience;

● High labor costs;

● Waste of hydro dipping film and consumables;

● Inability to ensure consistent finished product quality.

If your factory’s order volume is continuously increasing, manual or semi-automatic hydro dipping equipment can no longer meet production requirements. At this stage, a fully automatic hydro dipping production line becomes an important solution to improve production efficiency and expand capacity.

2. Introduction to the Fully Automatic Hydro Dipping Production Line

An Automatic Hydro Dipping Line is a complete water transfer printing solution designed specifically for continuous and high-volume production.

This equipment is suitable for:

● Large hydro dipping processing factories

● OEM / ODM manufacturing enterprises

● Custom factories focused on long-term mass production

Unlike manual or semi-automatic hydro dipping equipment, this automated production line integrates multiple processes into a stable, controllable, and standardized production line, significantly improving production efficiency and finished product quality.

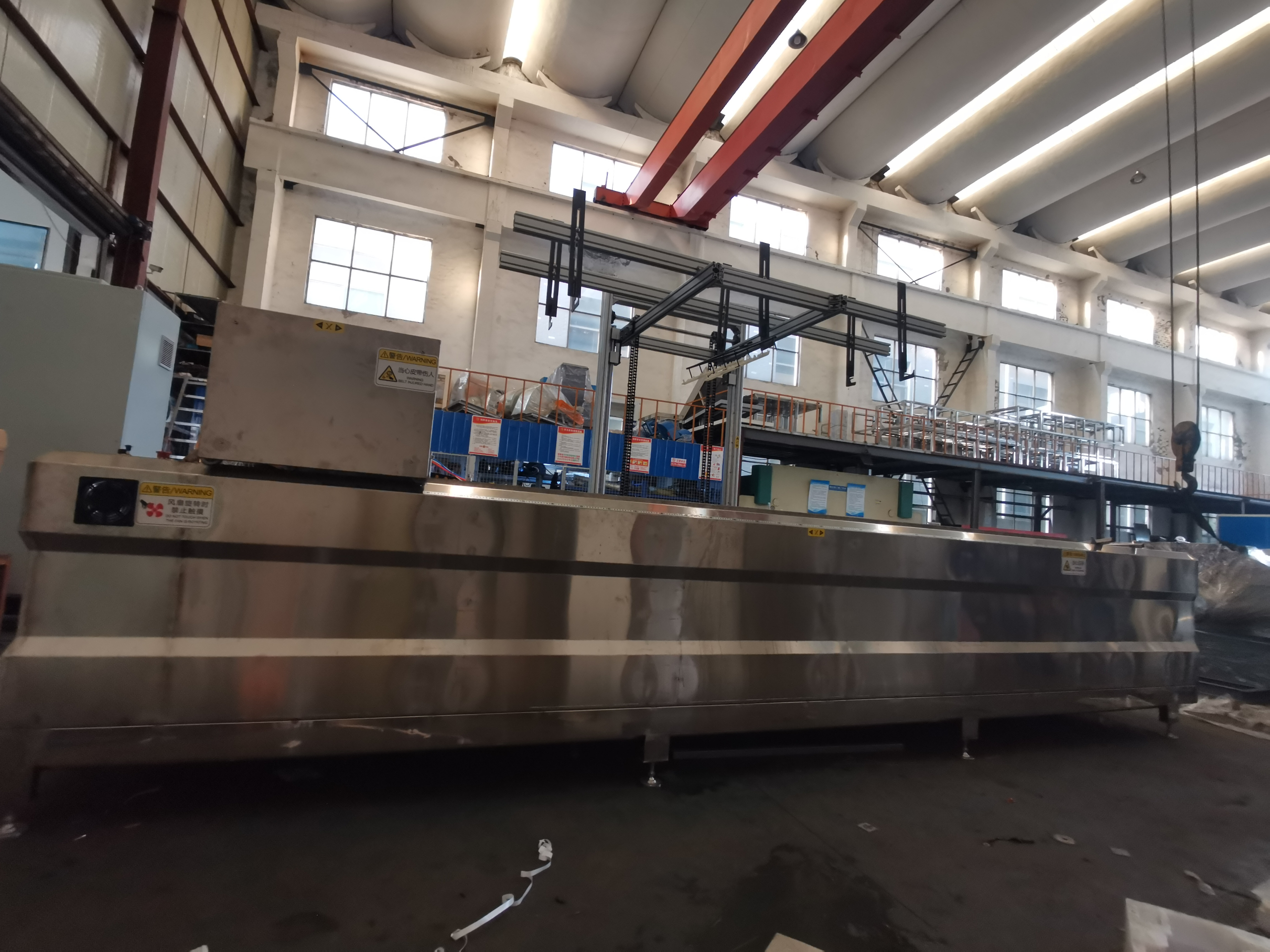

A typical fully automatic hydro dipping production line includes:

● Automatic constant temperature heating system: Quickly heats the water and maintains stable temperature control;

● Automatic activator spraying system: Ensures accurate and uniform activator application;

● Automatic film conveying system: Allows film to be laid in any required length, helping to reduce film consumption;

● Automatic dipping arm: Ensures consistent dipping motion and angle for each cycle;

● Automatic water circulation and filtration system: Removes residues in time, prepares clean water for subsequent processes, and reduces water consumption.

The entire production process requires only two workers:

● One worker is responsible for loading the products;

● One worker is responsible for unloading the products.

This setup enables continuous, high-volume hydro dipping production, significantly reducing labor and consumable costs while improving operational efficiency.

3. What Products Are Suitable for an Automatic Hydro Dipping Production Line?

Automatic hydro dipping production lines are widely used for:

● Automotive interior and exterior parts

● Motorcycle components

● Home appliance housings

● Industrial equipment housings

● Electronic product housings

Common applicable materials include:

● ABS / PP plastics

● Metals (aluminum, steel, etc.)

● Glass

● Wood

● Rubber

If your products are mainly repeat orders with relatively fixed specifications, an automatic production line can deliver a very attractive return on investment.

4. Automatic Hydro Dipping vs. Manual Hydro Dipping: Cost and Efficiency Comparison

Comparison ItemManual SystemAutomatic Production Line
Labor requirementHighLow
Production capacityLimitedHigh
Quality consistencyOperator-dependentStable and consistent
Initial investmentLowerHigher
Long-term unit costHigherLower

Although the initial investment of an automatic production line is relatively high, as production volume increases, its advantages become increasingly evident—especially in unit cost, yield rate, and labor cost control.
This makes it particularly suitable for production-oriented enterprises with long-term orders.

Generally, a Fully Automatic Hydro Dipping Production Line Is More Suitable for the Following Companies

● Companies requiring long-term, large-volume production

● Companies with strict standards for product appearance consistency

● Companies seeking to reduce labor dependency and labor costs

● Companies with clear plans for capacity expansion

5. Get a Customized Fully Automatic Hydro Dipping Production Line Solution

Because product sizes, production volumes, and factory conditions vary, conducting a targeted solution evaluation before purchasing is very important.

Based on your actual requirements, we can provide:

● Fully automatic hydro dipping production line configuration recommendations

● Matching solutions for equipment, hydro dipping film, and activator

● Installation guidance and operator training support

Please feel free to contact us and provide the following basic information:

● Maximum product size

● Expected daily output

● Product material types

Our technical team will assist you in planning a hydro dipping solution truly suitable for large-scale mass production.

What Equipment is Required for Water Transfer Printing?

What Equipment is Required for Water Transfer Printing?

/0 Comments/in /by

What Equipment is Required for Water Transfer Printing?

1. Water Transfer Printing Technology

Water transfer printing, a popular surface modification technology, enables personalized customization of product surfaces by transferring patterns from a water-soluble film to an object. It is widely used in automotive interior and exterior modification, sports equipment, electronic devices, home decor, and other fields, offering endless possibilities for personalized product appearance.

2. Core Equipment for Professional Hydro Dipping

To achieve perfect transfer results, in addition to basic consumables such as water transfer film and activator, professional transfer equipment is also crucial. This will determine the efficiency and effectiveness of the transfer. Let’s take a look at the specific equipment required.

● Basic Equipment

1. Water Transfer Printing Tank

Depending on the size of the object being transferred and the scale of production, different sizes and types of equipment can be selected.

● Manual Water Transfer Printing Tank: Economical and practical, suitable for studios and small-batch production, but requires some operator experience.

● Semi-Automatic Water Transfer Printing Tank: A manual water tank with a robotic arm improves production efficiency and transfer quality.

● Fully-Automatic Water Transfer Printing Tank: An intelligent operating system allows one person to operate, suitable for large-scale production.

2. Spray Booth

Before transfer printing, the object needs to be painted using the appropriate primer color based on the water transfer film. The spray booth’s equipped water curtain pump ensures sufficient water flow to remove paint mist. A high-power, high-suction exhaust fan ensures that all exhaust fumes are expelled, maintaining a comfortable and clean workstation.

3. Rinse Tank

The rinse tank thoroughly rinses away film residue from the product surface. Equipped with a high-pressure spray system and multiple nozzles at different angles, it can thoroughly clean objects of various shapes.

4. Drying Oven

The drying oven is used to dry the painted product after painting, shortening drying time and improving production efficiency while ensuring consistent paint quality.

For large-scale production, we recommend the following automated production lines:

1. Automatic Film Flowing Machine

Equipped with an electrostatic dust removal device to reduce residual static electricity on the film surface. The machine head can move back and forth within the chute, allowing for easy adjustment of the film soaking time. A drum that feeds water drives the film, ensuring that the water transfer film is evenly and smoothly applied to the water surface, preventing bubbles and wrinkles.

2. Fully Automatic Tripod Transfer Machine

Equipped with a one-touch start system, automatic heating and temperature control, automatic activator spraying, automatic film flow, automatic water circulation, automatic water filtration and cleaning, and an automatic exhaust system. With just one button, the entire water transfer process is completed, capable of producing 180-200 (60 x 50 cm) sheets of adhesive per hour, offering exceptional efficiency.
